TypeModel No.MakerCountryConstruction
DateScale LengthArea of Use
Made by Ferns for Babcock & Wilcox Co.England
1970Dia. = 12.8 cmNuclear Power Industry

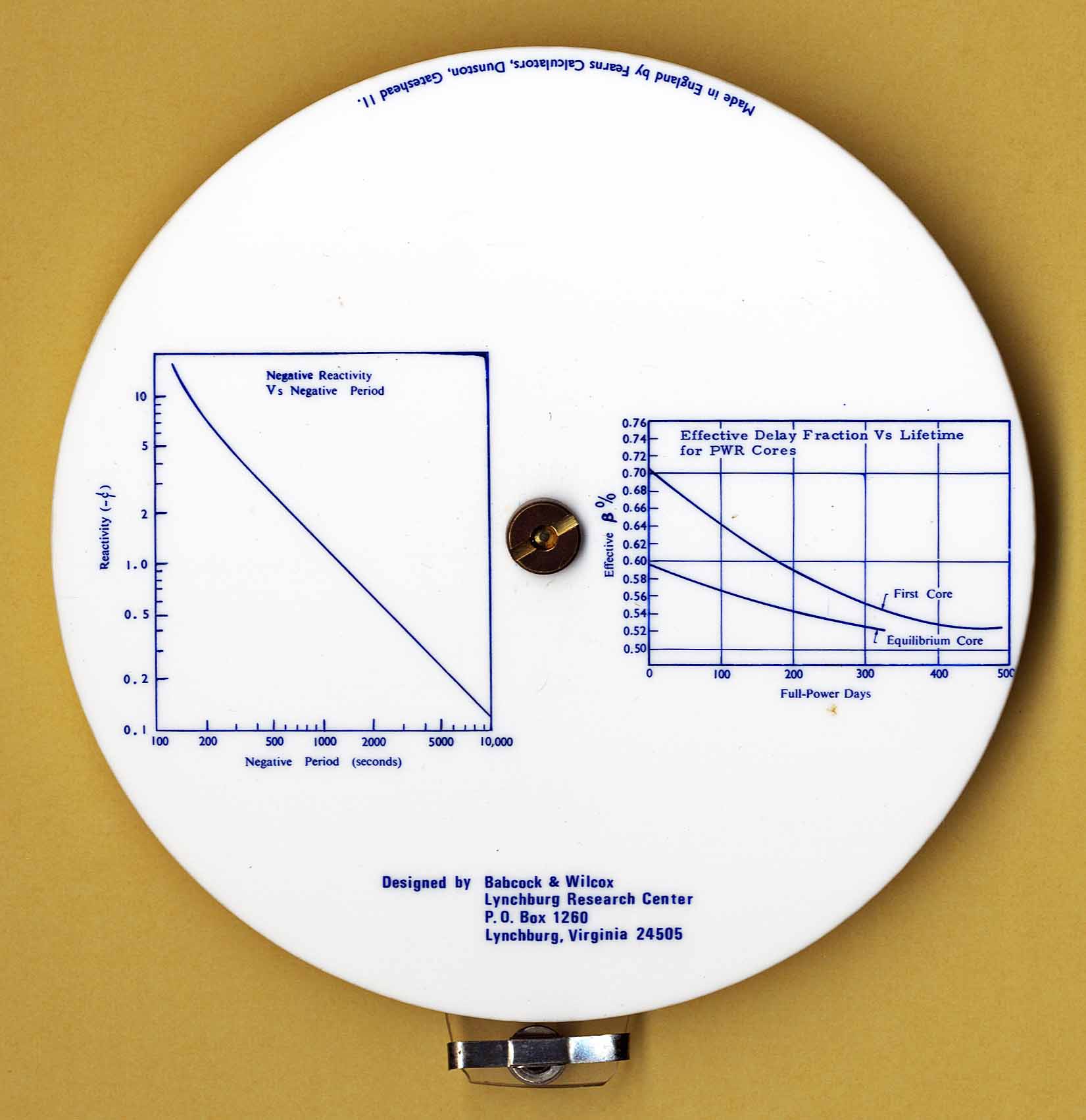

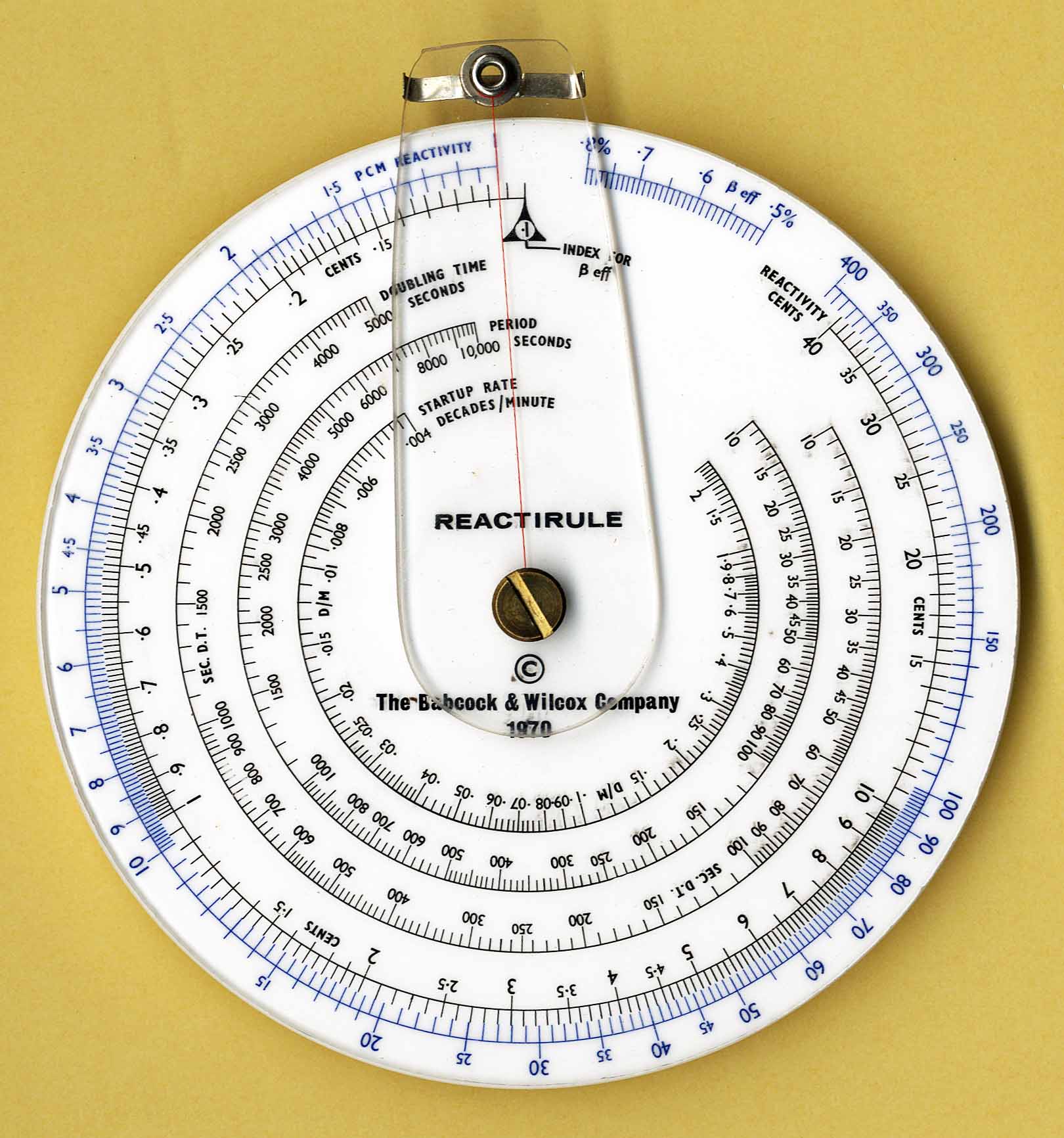

Notes: "1) Front side has various scales used to calculate nuclear reactor operational factors depending on the core material, time and other factors 2) The reverse side has two graphs showing reactivity = 1 indicates the core is critical, negative ractivity indicates the core is subcritical. 3) See ""Westinghouse Technology Systems Manual Section 2.1 Reactor Physics Review"" for details."
