TypeModel No.MakerCountryConstruction
Material
DateScale LengthArea of Use
Polar
"Allbrit ""Fixed Index"" Polar Planimeter"
W.F. Stanley
UK
German Silver
1933-1980's
N/A
General area measurement

Notes: """Fixed Index"" refers to neither the pole arm or tracing arm being adjustable. In use this is not a big limitation, but you must determine a scale factor to convert the planimeter reading into the units of your drawing. "

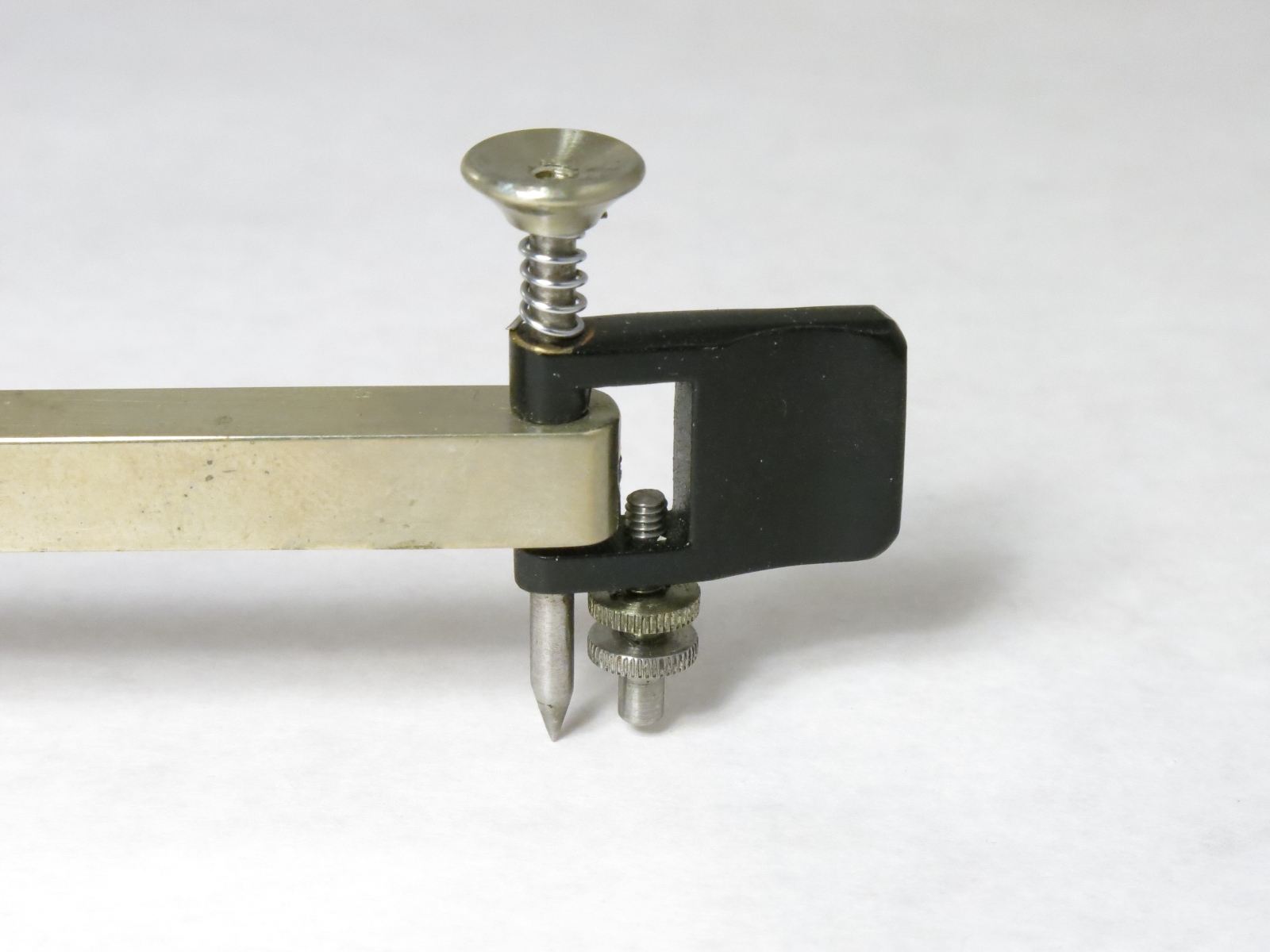

Image 1

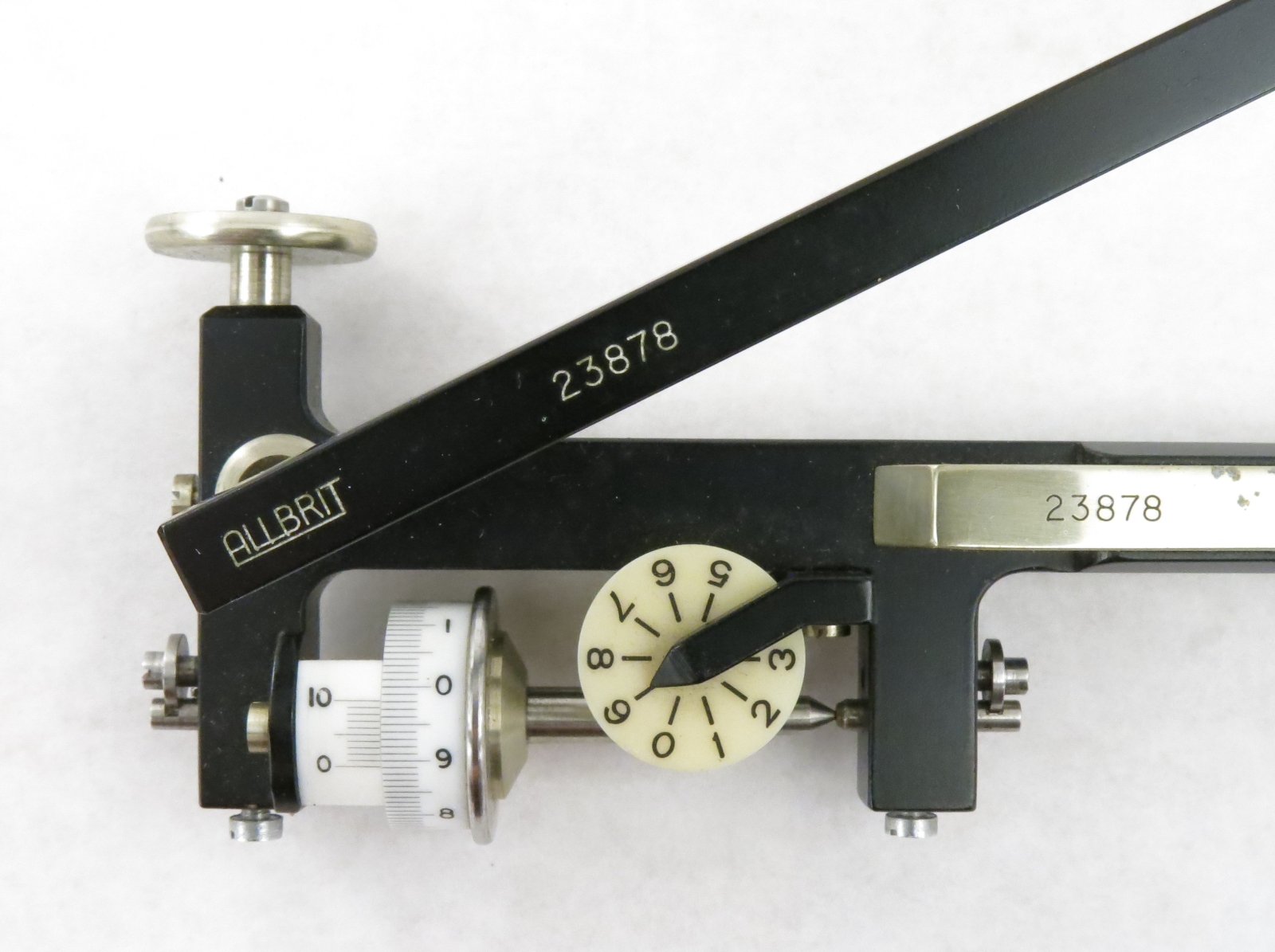

Image 2

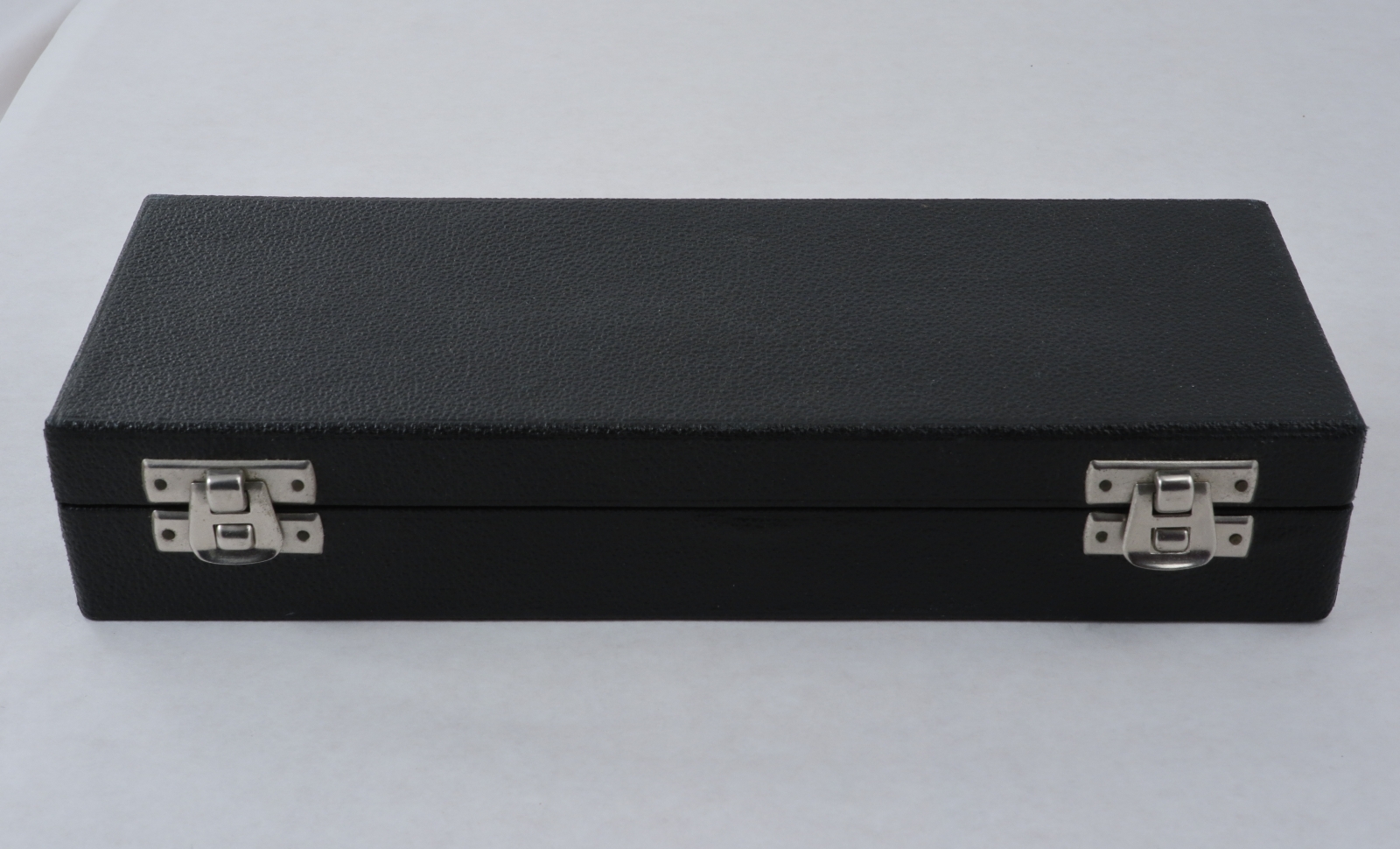

Image 3

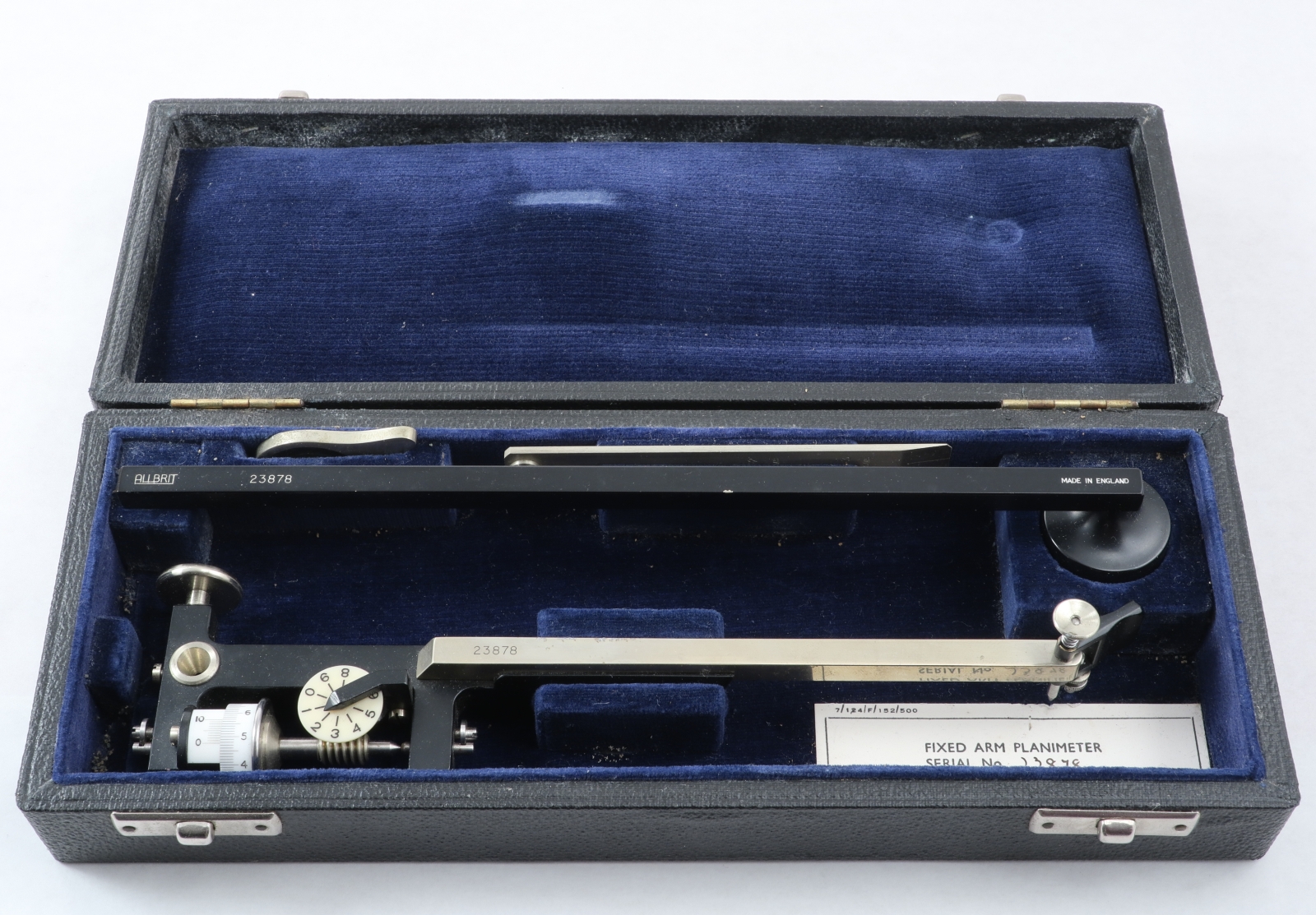

Image 4

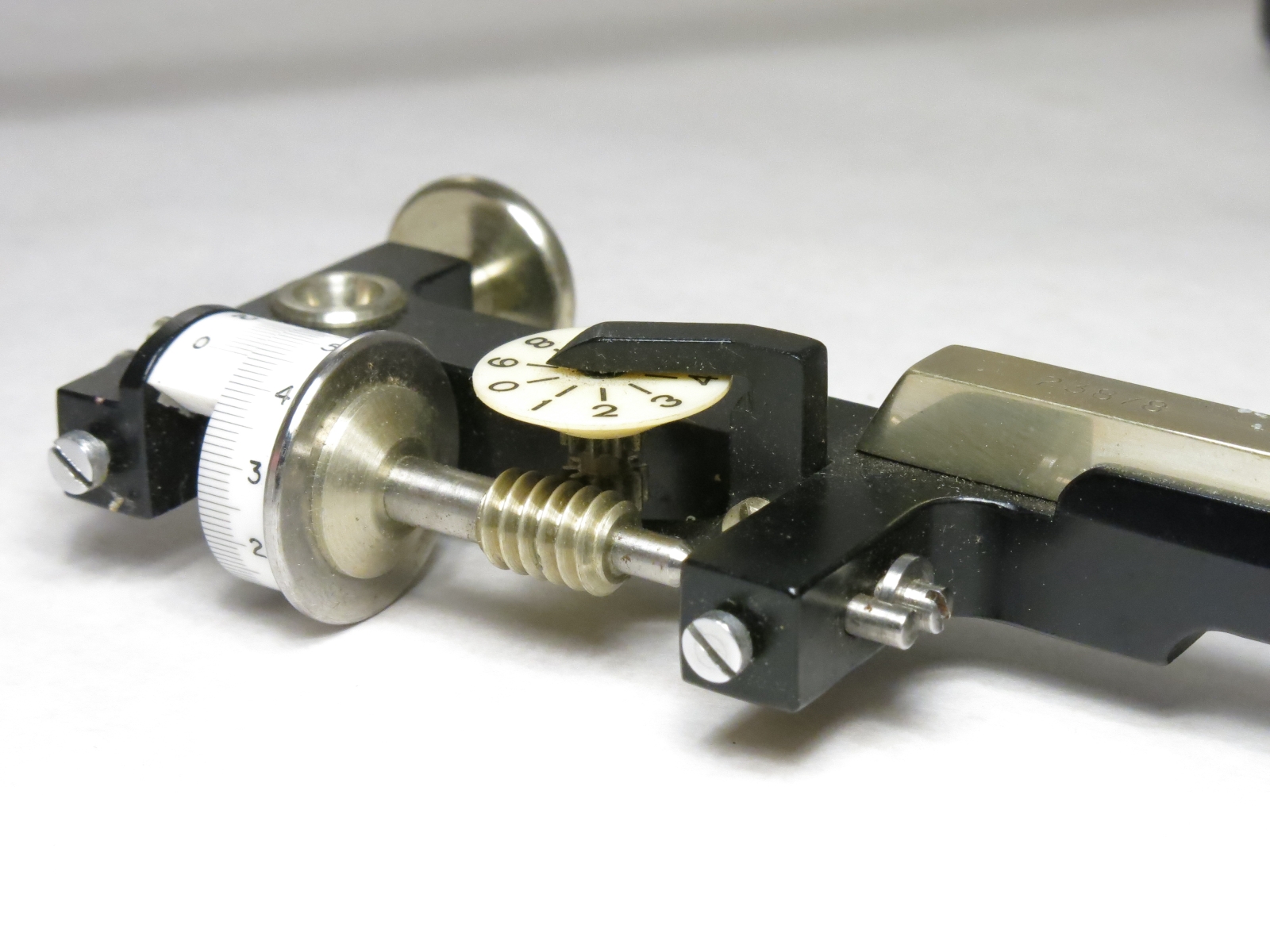

Image 5

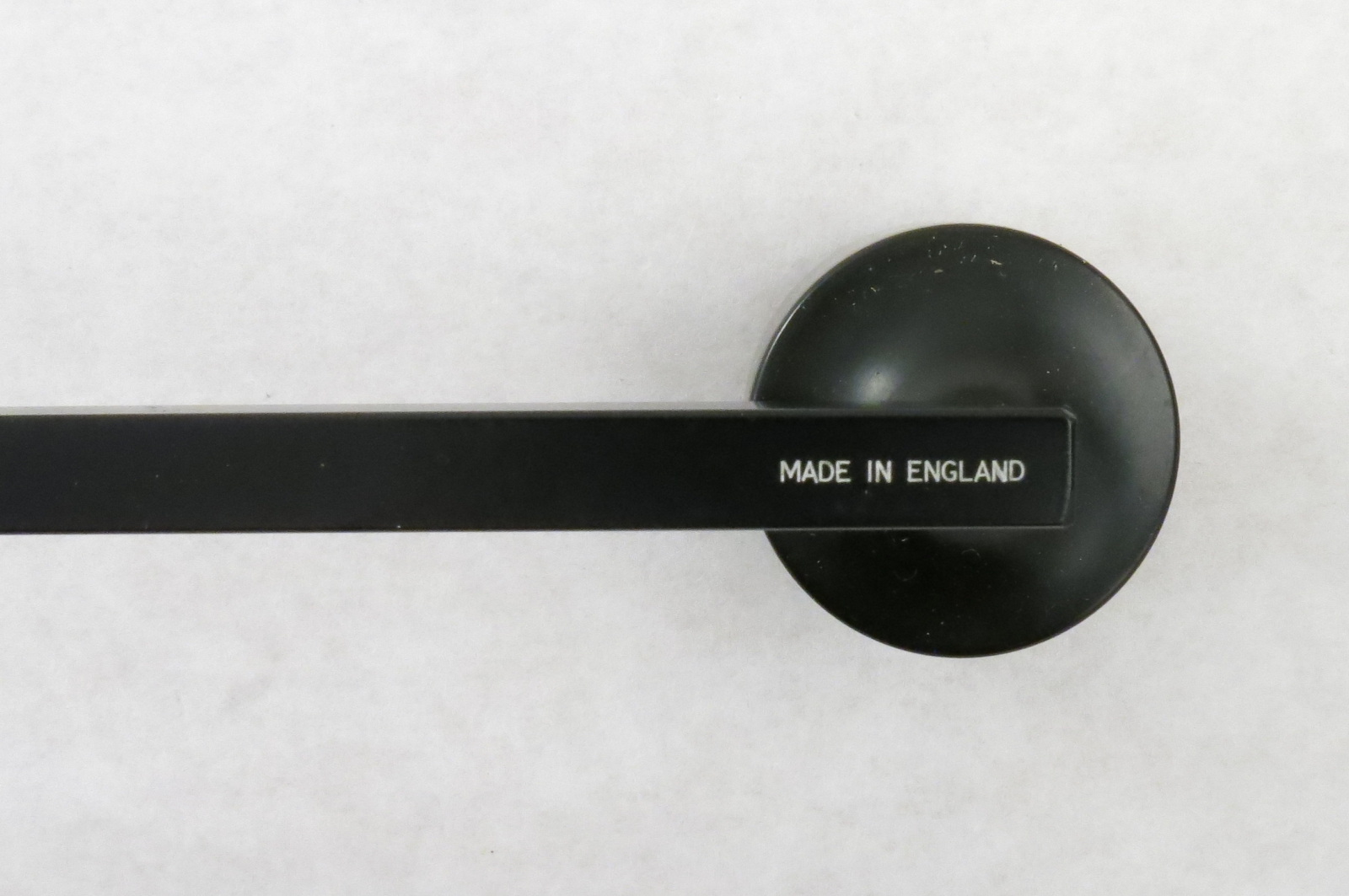

Image 6

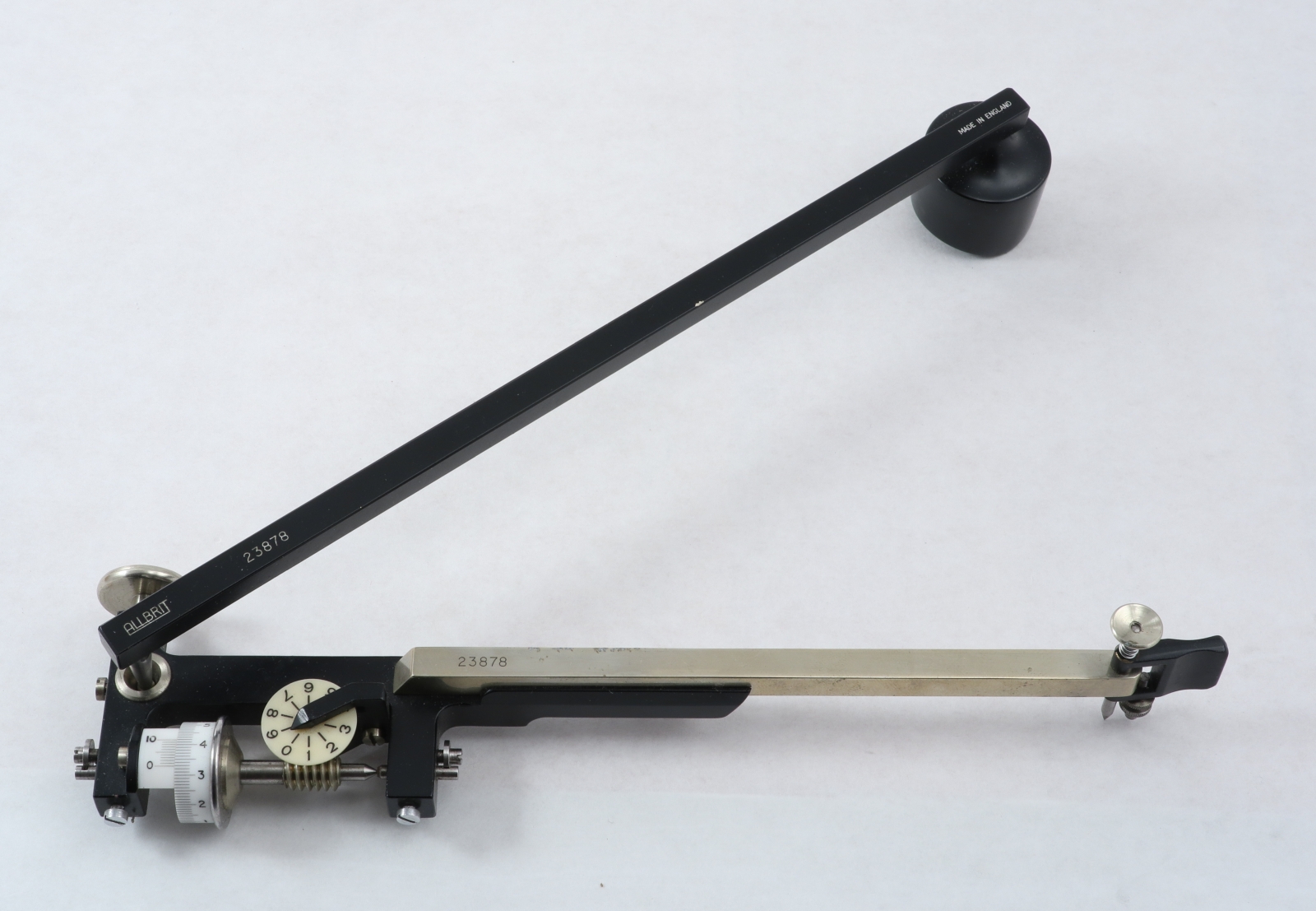

Image 7

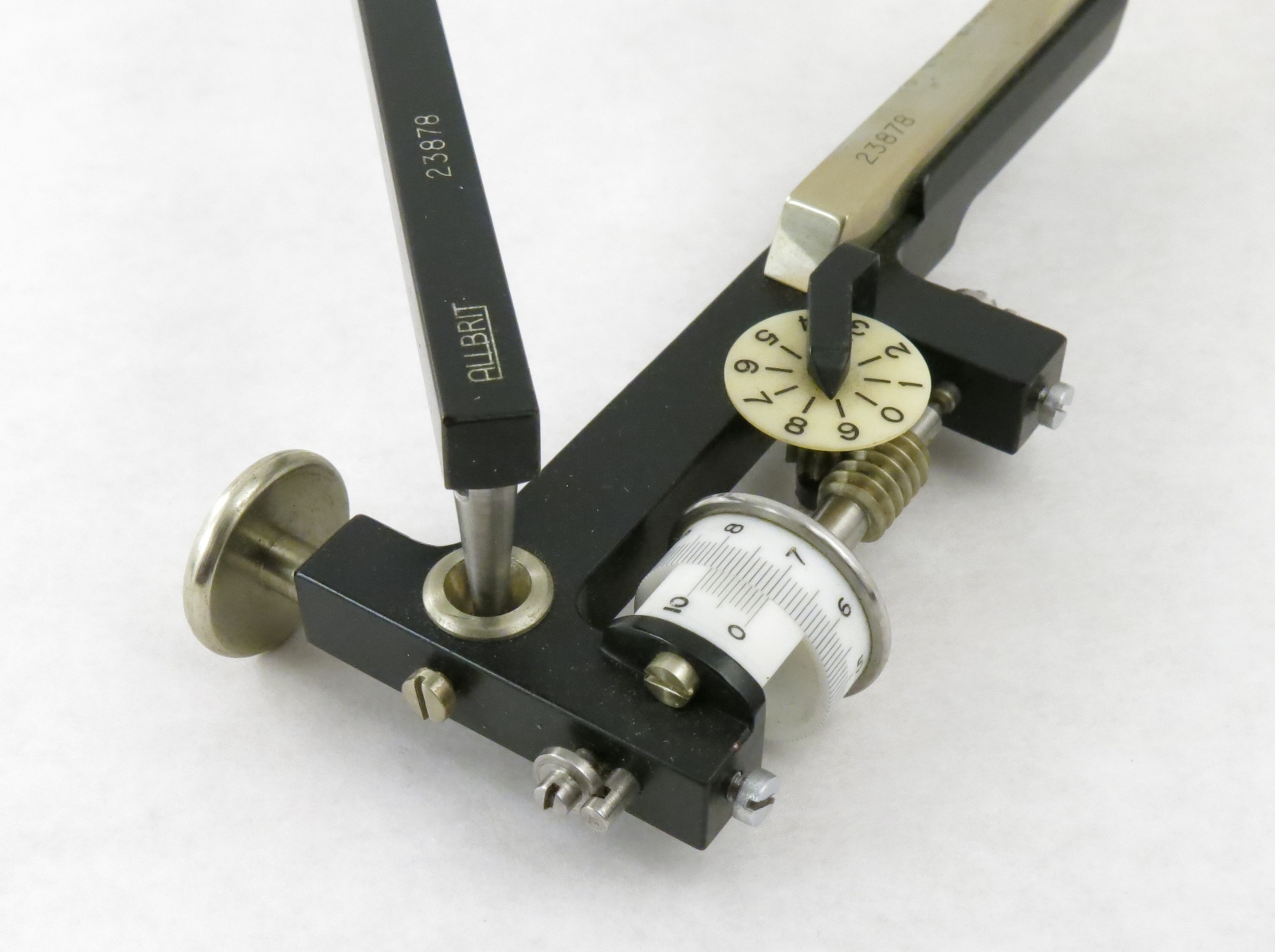

Image 8
