Archive of Collections



Details and Image



TypeModel No.MakerCountryConstruction
Material
DateScale LengthArea of Use
Alcohol Slide Rules
Webb / 4-fold Dipping Rod
Thomas Webb
UK
Wood/brass
1824-1832
122 cm
Gauging

Notes: Such gauging rods were used to measure the quantity of wine or spirits in a barrel. The 4th side is blank. It dates from pre 1825 because of Winchester Gallon based units/gauge marks.

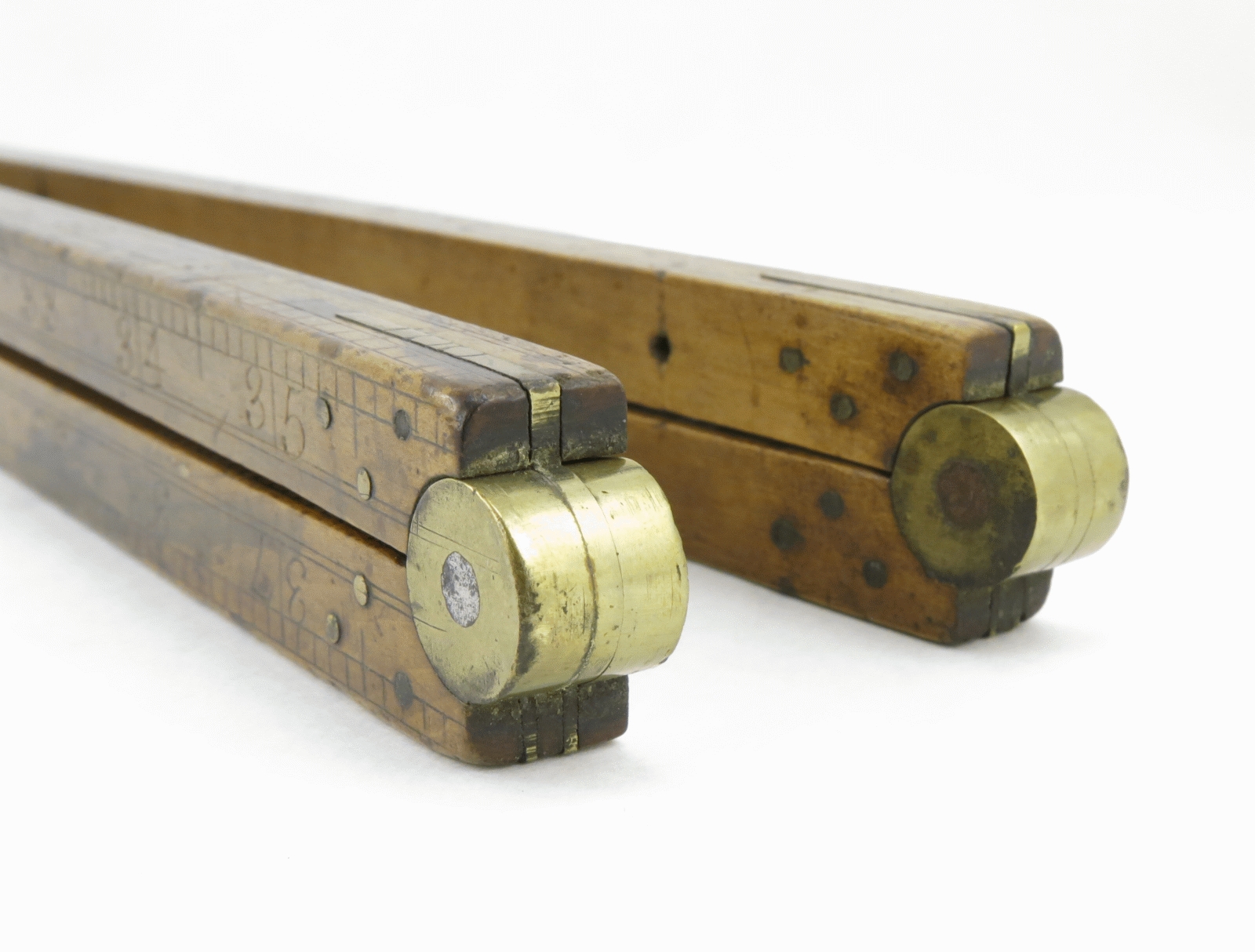

Image 1

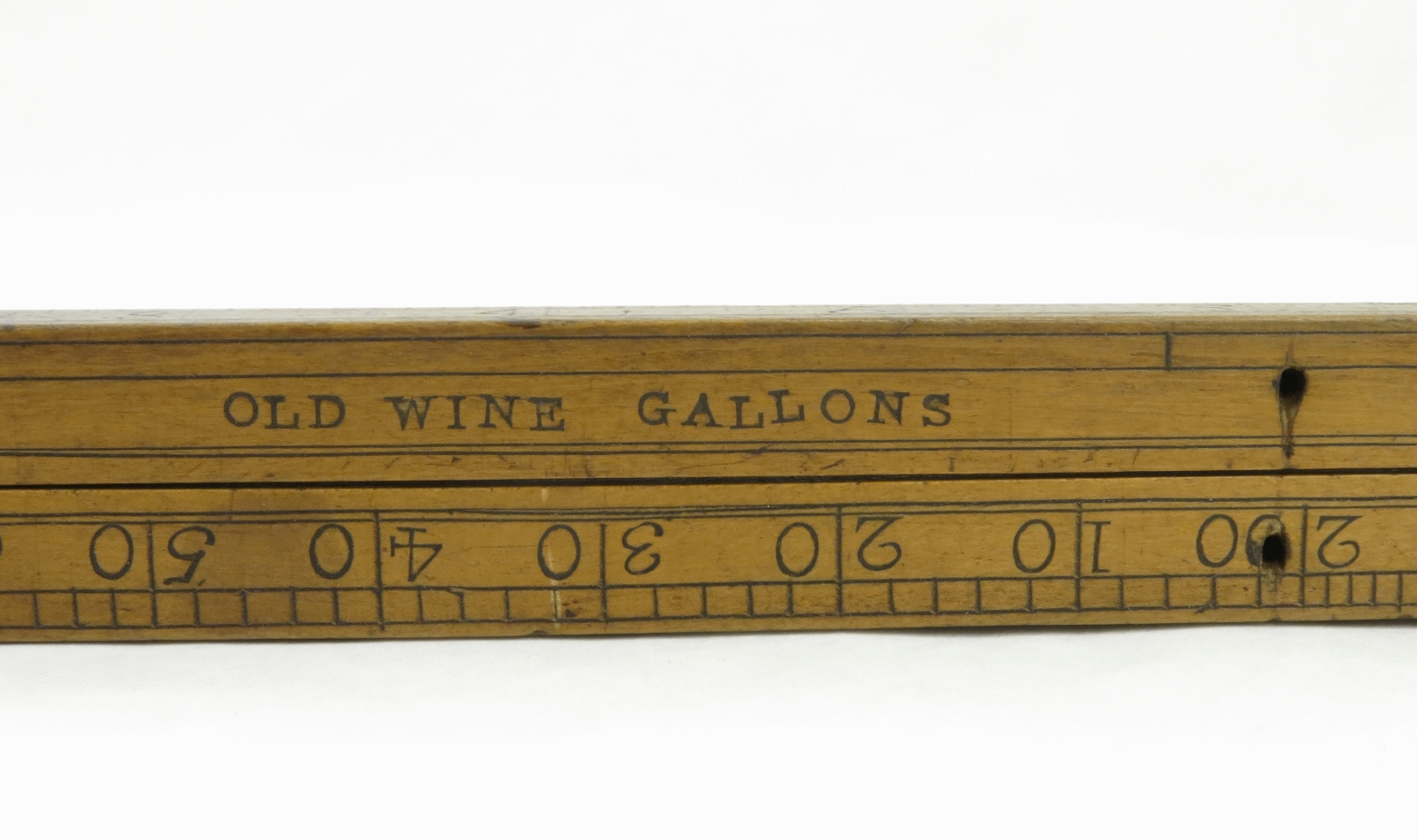

Image 2

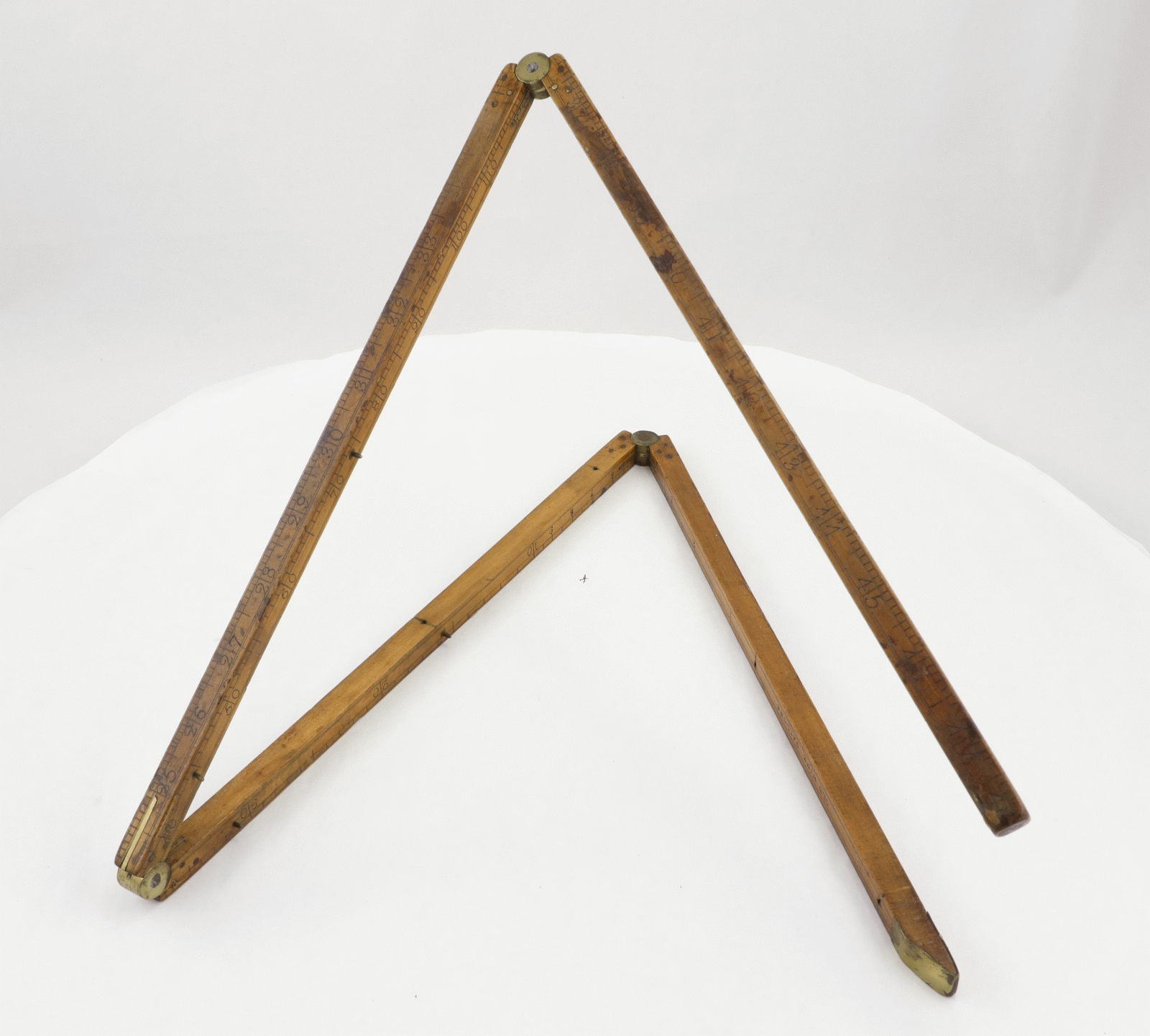

Image 3

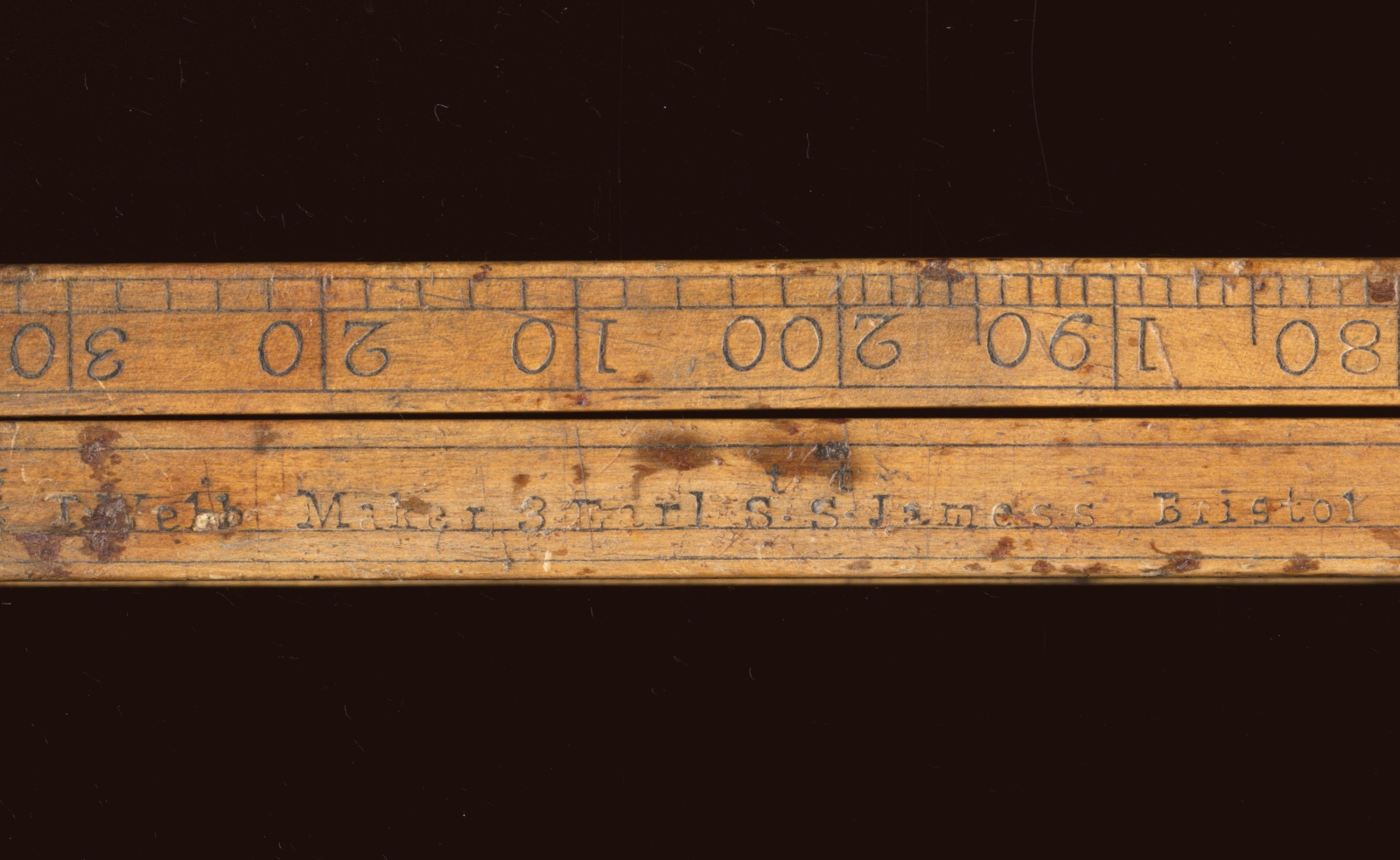

Image 4

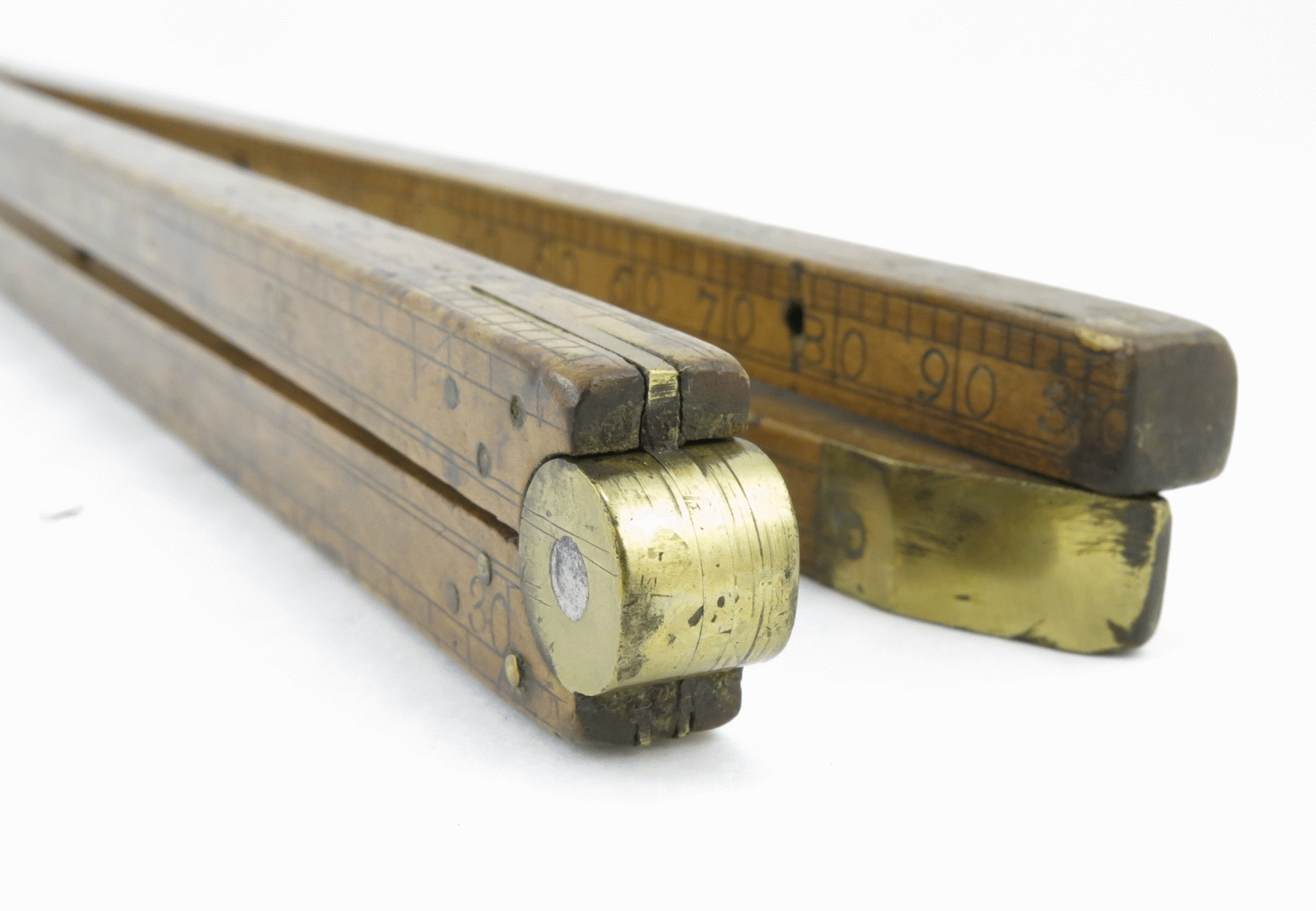

Image 5




Image 6
